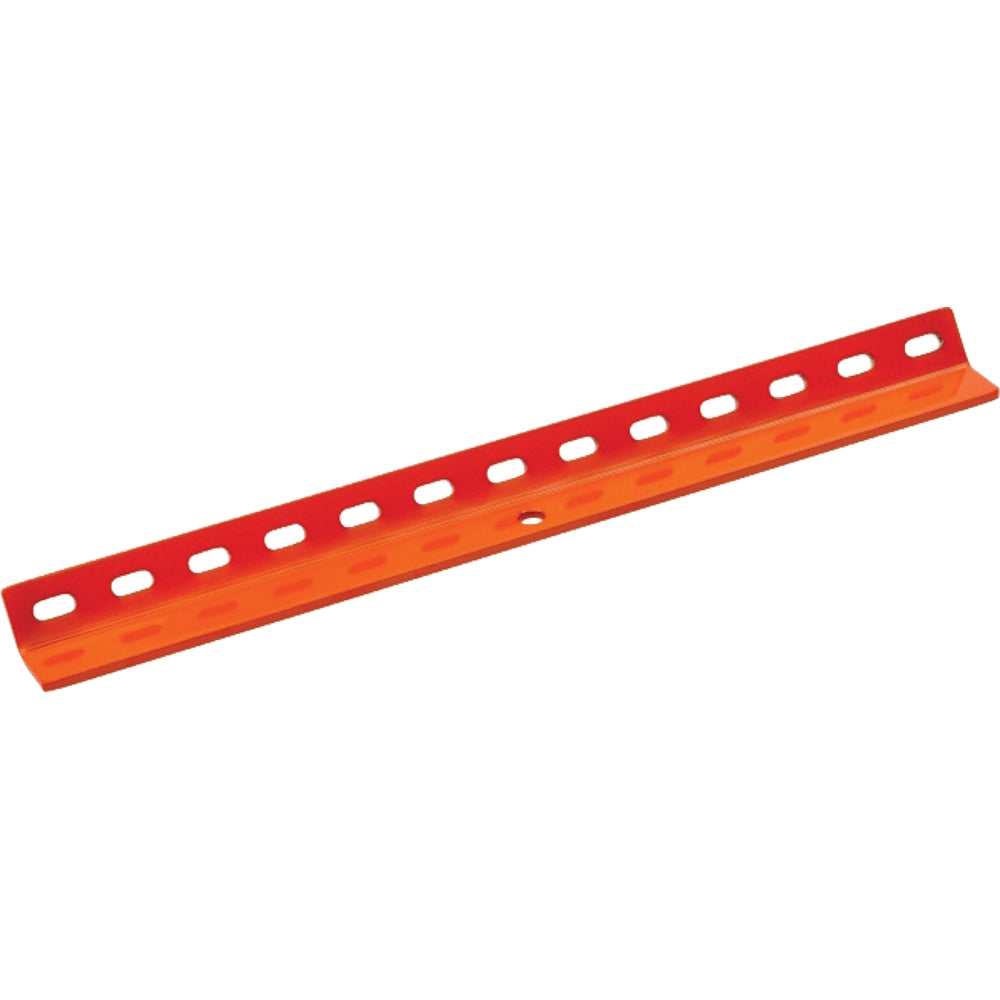

LINQ Anchor Tetha V-Bar Straight 500mm

The LINQ Anchor Tetha V-Bar Straight 500mm (Product Code: HSTBS500) is a temporary roof anchor engineered for extreme workplace situations, providing a durable and efficient solution for fall protection. Key features include:

• High Strength Alloy Steel Construction: Offers an ultimate breaking strength of at least 15kN, ensuring robust performance under demanding conditions.
• Fall Arrest Capability: Designed to withstand fall arrest forces up to 15kN, suitable for users weighing up to 140kg.
• Quick Installation and Removal: Features an easy-to-use camlock system, allowing for rapid setup and takedown without the need for permanent fixtures.
• Versatile Application: Serves as a temporary anchor point along roof lines where no permanent anchor exists, providing a safe 360-degree work area.
• Compatibility: Intended for use on metal-clad roofs, specifically suitable for Trimdeck or Custom Orb profiles.
• Standards Compliance: Conforms to AS/NZS 1891.4 and AS/NZS 5532:2013 standards, ensuring adherence to safety regulations.

Technical Information:

• Material: High strength alloy steel
• Length: 500mm
• Minimum Breaking Strength: 15kN
• User Capacity: Rated for users up to 140kg

Note: It is crucial to ensure that the structure to which the LINQ Tetha anchor plate is installed has sufficient strength to sustain the applied load, as per AS/NZS 1891.4. Installation should always be conducted by a competent person as described in the standard.

For detailed information, please refer to the product data sheet.
